A digital weigh scale is one of the most precise analog instruments. Weigh scales, which use force sensors to measure the load offered by an object, are used in a multitude of applications ranging from point-of-sale terminals to industrial-measurement equipment.

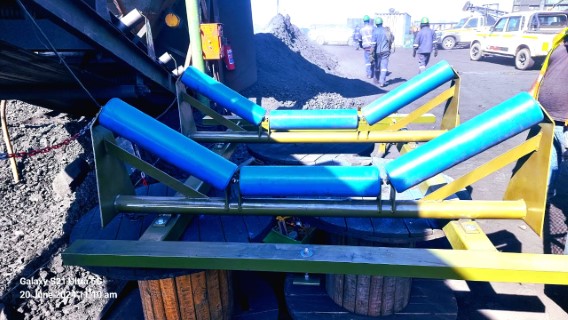

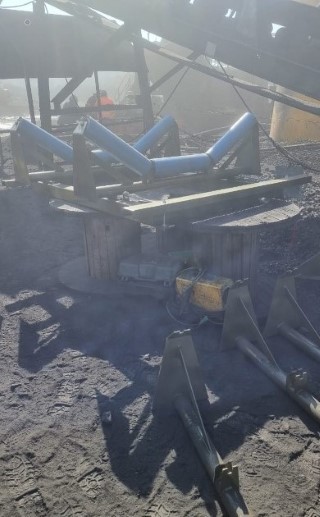

We do 2,3 and 4-idler weigh frames compromising of either Pivot point or Torque beam Systems.
Our Tacho design is unique and Robust. By using a weigh class Idler with sensors, sensing is done by a high-speed proximity switch. We ensure a long-life tacho that is not affected by moisture or spillage. The proximity switch and bearings are sealed and waterproof.

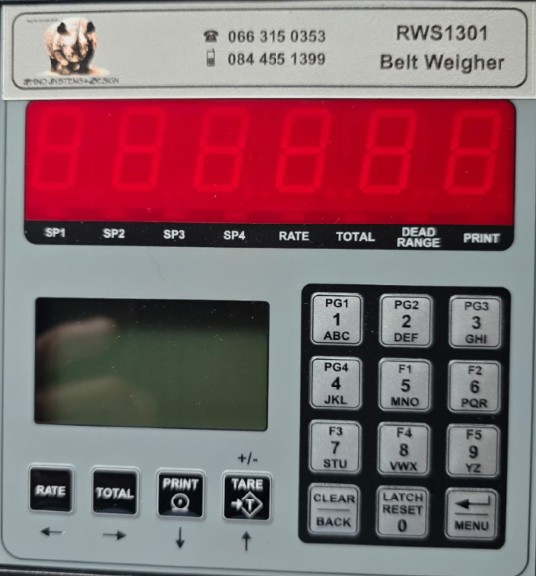

The Weightometer Belt Weigher indicator is a precision digital indicator for belt weighing applications. The Weightometer takes the weight and speed information from a belt conveyor system to accurately calculate rate and total material transferred. The high bright 6-digit 7-segment 20mm LED displays and the sunlight readable graphic LCD display make for easy setup and readability. A simple menu system allows for easy configuration of display and belt weighing settings.
Our controller units include Remote Monitoring capability. Real-time monitoring and control can be viewed on any smart device or PC.
The MITSENS make use of LORA technology
LoRa (short for long range) is a spread spectrum modulation technique derived from chirp spread
spectrum (CSS) technology.
Semtech's LoRa is a long range, low power wireless platform that has become the de facto
wireless platform of
Internet of Things (IoT).
The MITSENS system can be remotely updated and configured. The system let the user to be fully
in control of there remote devices.
Basic Network

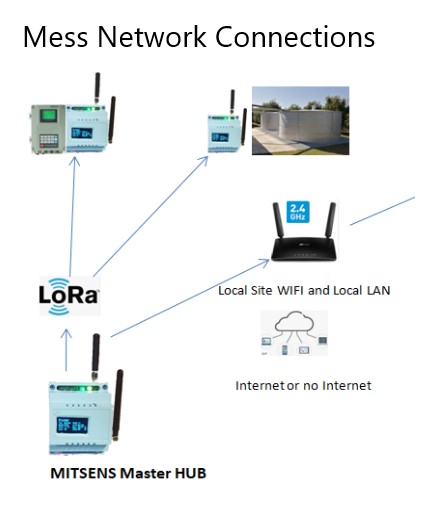

Mess Network
Fully Floating Frame 4 Load cells
Pivot Point Frame 1 or 2 Load Cells
Torque Beam Frame 1 Load cells
Single Idler Frams 1 or 2 Load cells
The belief through the years was that a fully floating frame is the most accurate measure method.
This is well the case on heavy loads.
On loads less than 300TPH is better to make use of Torque Beam or pivot frames.

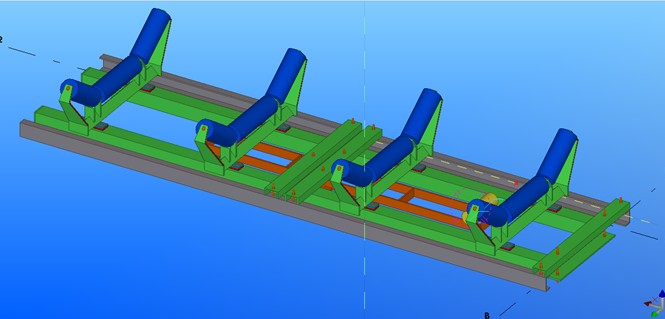

Scale Design Layout
RHINO SYSTEMS & DESIGN is situated in the heart of the coal mining country, namely Emalahleni(Witbank).
This makes RHINO SYSTEMS & DESIGN well suited to offer superior response times at a preferred rate.
RHINO SYSTEMS & DESIGN has been in the Density, Weighing, and Instrumentation field for the past twenty years.
The experience and know-how acquired have placed RHINO SYSTEMS & DESIGN at the forefront of the industry.
RHINO WEIGHING SYSTEMS was established in 1992 and subsequently changed to RHINO SYSTEMS & DESIGN.
Because Gerhard is hands-on, the company is owner-managed ensuring top-quality products and services.
The company`s focal point was and still is the Manufacturing, Sales, Service, and Maintenance of
Weightometers, Density Controllers, SCADA Systems, and Instrumentation and Mining Supplies.
The Company`s knowledge base in Technical, Sales, and Management is very extensive.
Our mission is to create an environment everyone can look forward to attending to daily.
We strive to ensure that everybody believes not only in themselves but also in the
company Rhino.
We would like to see all employees fulfill their dreams inside the company.
